TRACE
ACL 2026 Main Project Page

TRACE = Textual Representation of Allocentric Context from Egocentric Video

Unleashing Spatial Reasoning in Multimodal Large Language Models via Textual Representation Guided Reasoning

TRACE gives multimodal models a structured allocentric trace to reason over, rather than forcing 3D spatial understanding to emerge implicitly from raw egocentric video.

Paper BibTeX

Jiacheng Hua1,2, Yishu Yin1, Yuhang Wu1, Tai Wang2, Yifei Huang3,2, Miao Liu1†

1 College of AI, Tsinghua University 2 Shanghai Artificial Intelligence Laboratory 3 The University of Tokyo

Abstract

Existing Multimodal Large Language Models (MLLMs) struggle with 3D spatial reasoning because they fail to construct structured abstractions of the environment depicted in video. TRACE introduces a prompting method that elicits a text-based allocentric representation of the scene as an intermediate reasoning trace, encoding meta-context, camera trajectories, and grounded object entities before spatial question answering. Experiments on VSI-Bench and OST-Bench show consistent gains over prior prompting strategies across diverse MLLM backbones, while ablations and detailed analyses reveal the remaining bottlenecks of 3D spatial reasoning in MLLMs.

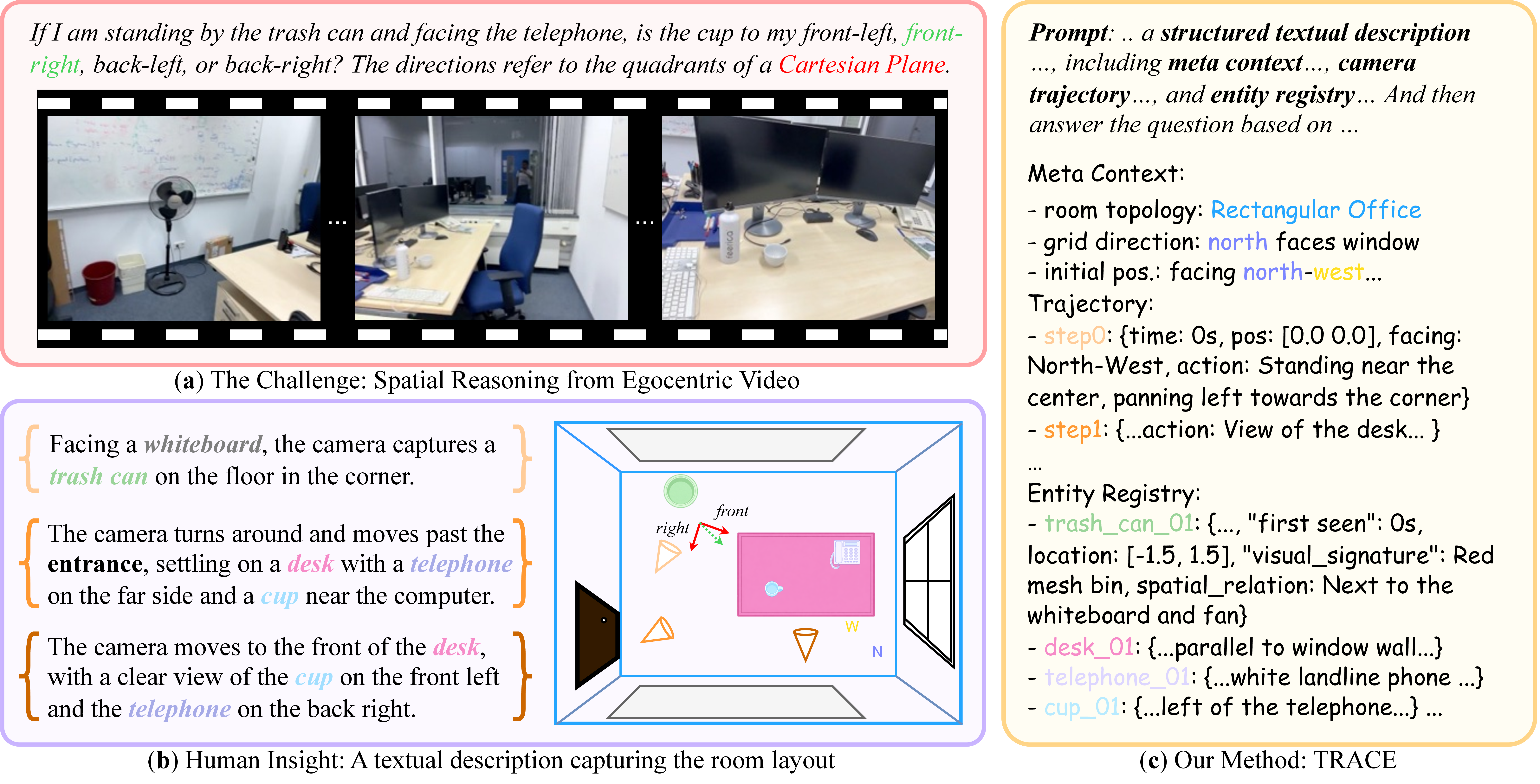

TRACE teaser figure showing the challenge of spatial reasoning from egocentric video and the TRACE representation.
Teaser

TRACE builds a room-level textual representation before answer generation, making spatial reasoning explicit rather than implicit.

Why it matters

Existing MLLMs often fail to build coherent 3D abstractions from egocentric video.

What TRACE changes

It replaces loose reasoning text with a structured spatial interface that models can query.

What we observe

Performance improves across proprietary and open backbones on both VSI-Bench and OST-Bench.

Overview

Text as a Spatial Interface

TRACE turns egocentric video into a structured allocentric trace that multimodal models can actually reason over.

Problem

Existing MLLMs often fail to maintain a stable 3D world model from egocentric video, so spatial reasoning remains brittle and implicit.

Approach

TRACE elicits an intermediate text representation that explicitly records room topology, camera motion, and grounded entities.

Outcome

The resulting spatial cache supports routing, measurement, order, and relational reasoning, while improving performance on both VSI-Bench and OST-Bench.

Method

How TRACE Structures Reasoning

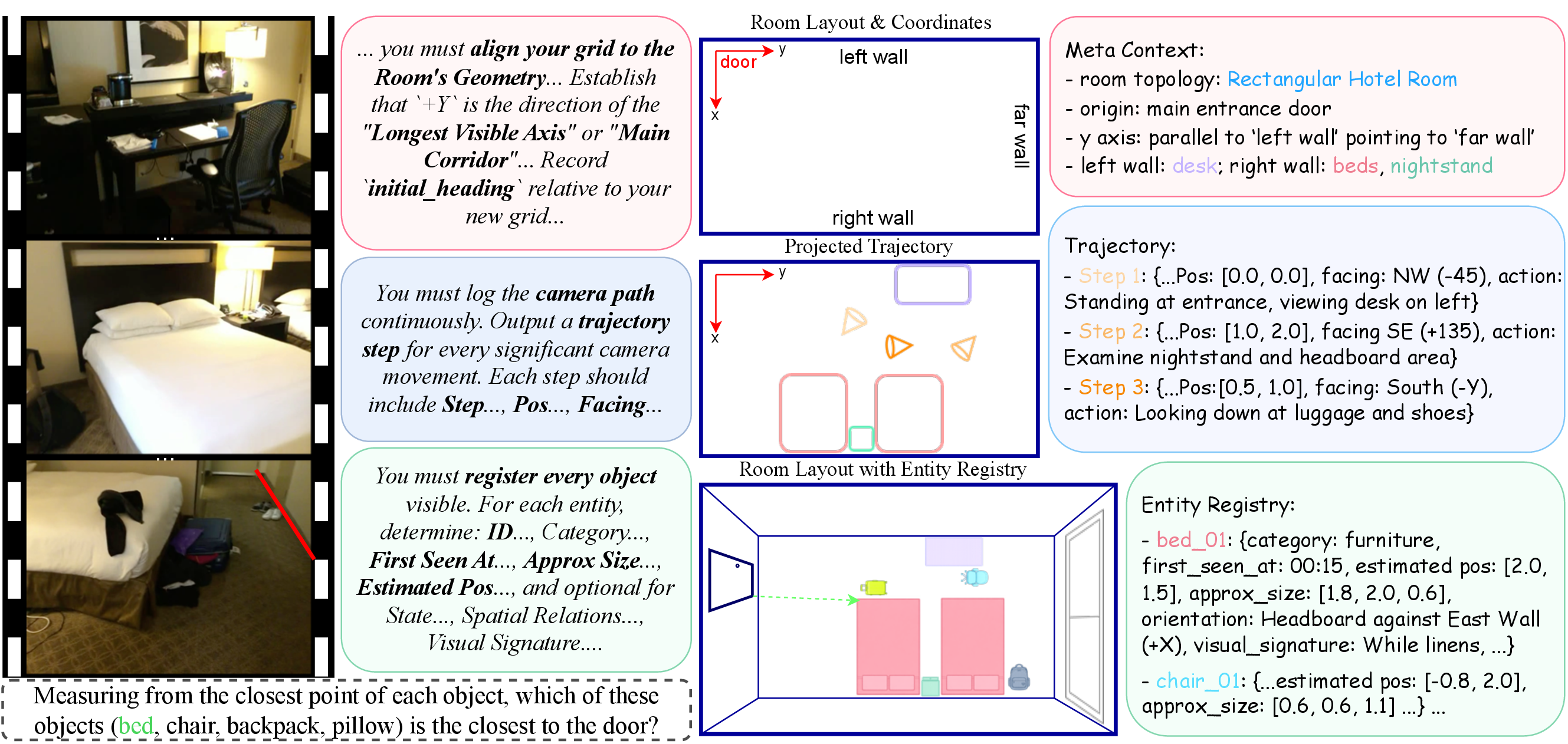

TRACE method figure with prompting structure, room layout, projected trajectory, and entity registry.
Method

TRACE first constructs a schema-compliant spatial trace, then conditions answer generation on that trace and the original video.

Step 1

Spatial Descriptor

The model observes egocentric video and emits structured allocentric text instead of unconstrained rationale.

Step 2

Structured Spatial Cache

Layout, movement, and grounded objects are stored in a form the model can revisit during inference.

Step 3

Reasoning Parser

Final answers are generated by reasoning over both the video and the previously constructed trace.

Results

Consistent Gains Across Models and Settings

VSI-Bench
Gemini 3 Pro
+7.54

Absolute gain over Direct prompting.

VSI-Bench
Qwen2.5-VL-72B
+3.10

Open-weight performance also improves under the same setup.

VSI-Bench
MiMo-VL-7B
+1.63

Compact models benefit from explicit geometric grounding.

OST-Bench
Gemini 3 Pro
+1.20

TRACE remains effective in multi-turn embodied scene understanding.

OST-Bench
MiMo-VL-7B
+2.39

The strongest uplift appears on the compact open-source model.

Ablation Signal
-5.24 without Entity Registry -1.92 without Trajectory

Entity grounding contributes the largest effect.

Reading the results
  • TRACE consistently outperforms prior prompting strategies on VSI-Bench.
  • One-stage prompting is stronger than two-stage inference for both Gemini and Qwen.
  • Text-only inference stays competitive, showing TRACE is already a strong video summary.

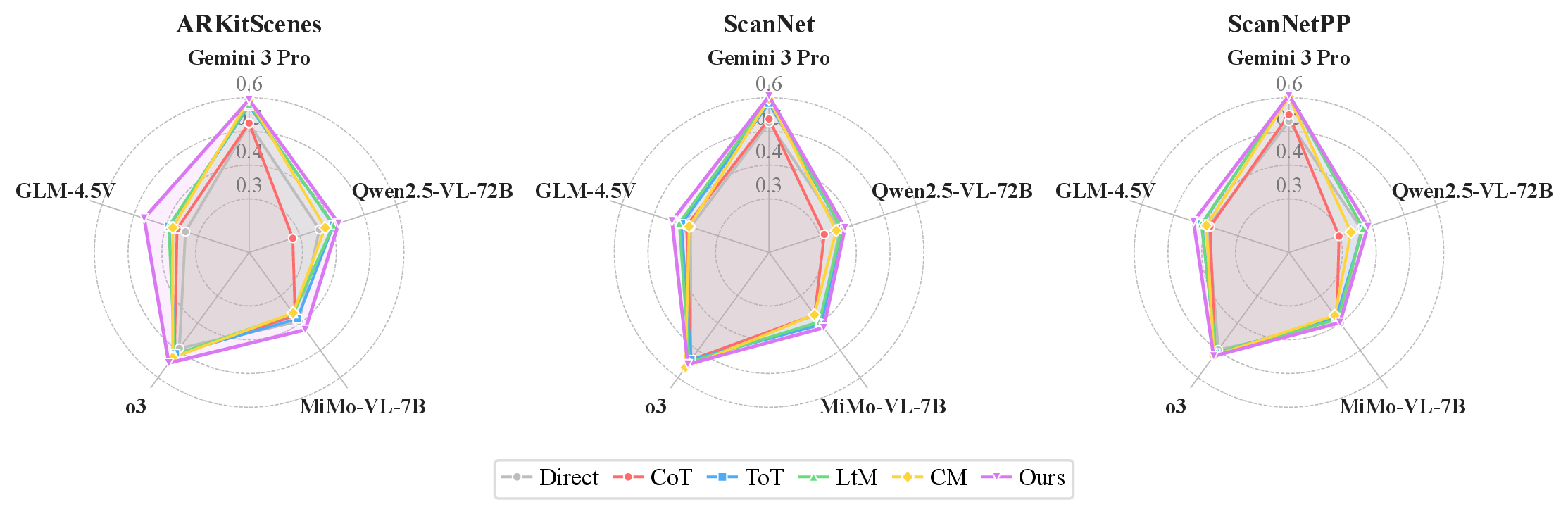

  • Cross-environment gains remain stable across ARKitScenes, ScanNet, and ScanNetPP.

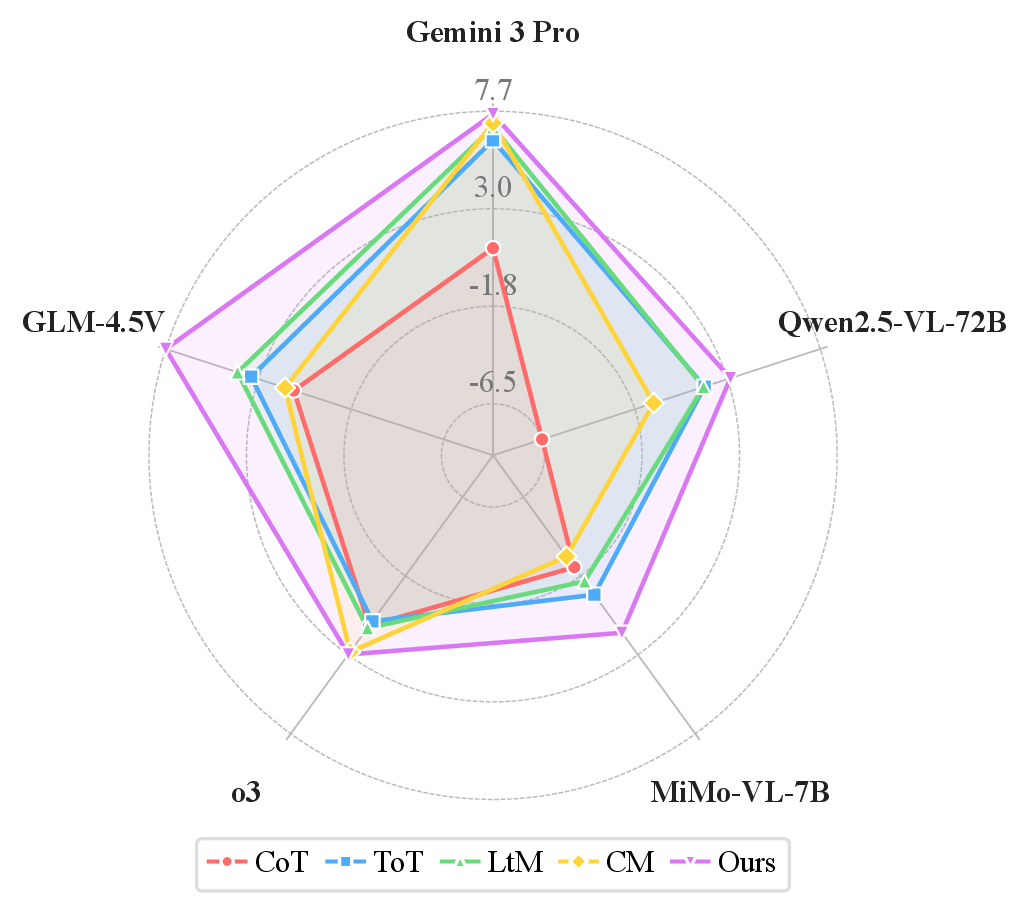

Performance gains across models on VSI-Bench.
VSI Gains

TRACE yields consistent improvements across multiple MLLM backbones.

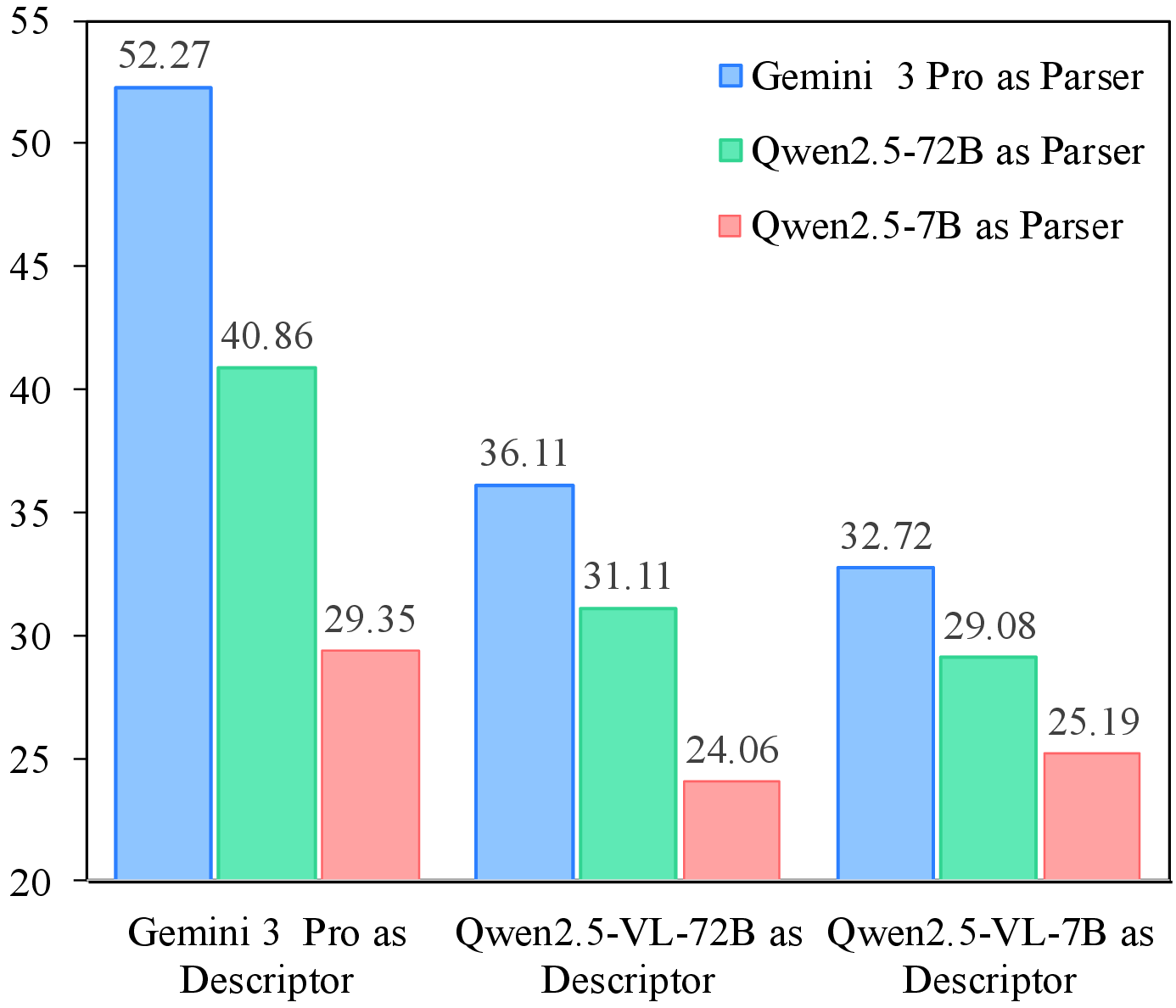

Decomposition analysis of spatial descriptor and reasoning parser.
Decomposition

Descriptor quality remains a key bottleneck in current spatial reasoning pipelines.

Citation & Resources

Use TRACE in Your Work

TRACE is a prompting interface for structured 3D spatial reasoning with off-the-shelf multimodal large language models.

Venue

ACL 2026 Main Conference

Location

San Diego, California, USA

Read Paper
Contact Jiacheng Hua — hjc21@mails.tsinghua.edu.cn Miao Liu — miaoliu@mail.tsinghua.edu.cn

Jiacheng Hua, Yishu Yin, Yuhang Wu, Tai Wang, Yifei Huang, and Miao Liu. 2026. Unleashing Spatial Reasoning in Multimodal Large Language Models via Textual Representation Guided Reasoning. In Proceedings of the 64th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), San Diego, California, USA. Association for Computational Linguistics.

BibTeX
@inproceedings{hua-etal-2026-unleashing,
  title     = {Unleashing Spatial Reasoning in Multimodal Large Language Models via Textual Representation Guided Reasoning},
  author    = {Hua, Jiacheng and Yin, Yishu and Wu, Yuhang and Wang, Tai and Huang, Yifei and Liu, Miao},
  booktitle = {Proceedings of the 64th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers)},
  month     = jul,
  year      = {2026},
  address   = {San Diego, California, USA},
  publisher = {Association for Computational Linguistics},
  note      = {To appear}
}
